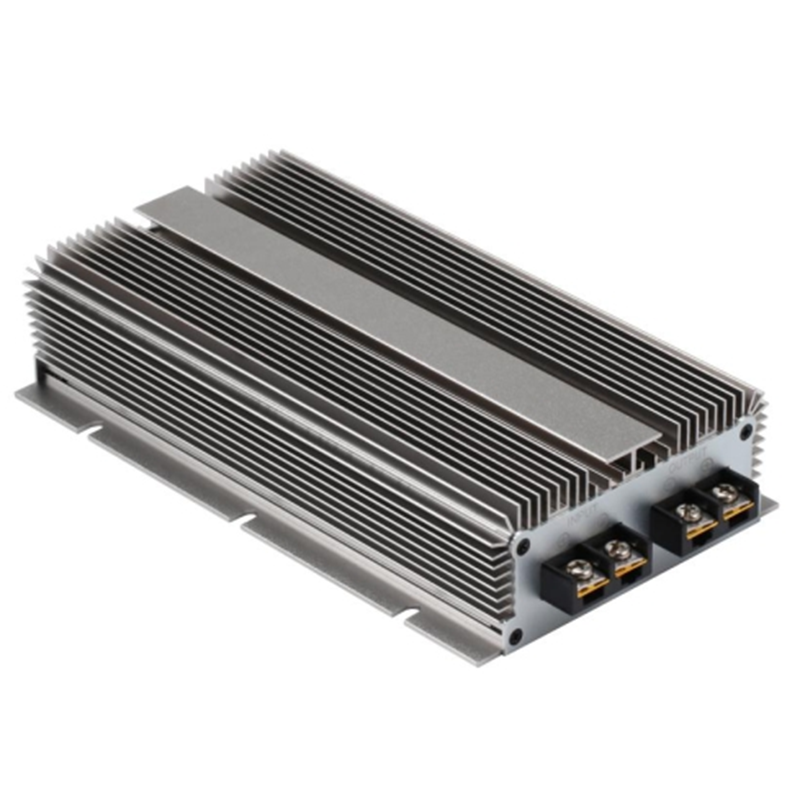

60V-72V to 12V 80A 960W DC to DC Converter
The WEHO WH-C60721280 is an ultra-high output powerhouse DC-DC converter, engineered for extreme power requirements that demand a massive 960W output. Delivering 80A of continuous current at 12VDC from a 60V-72VDC input, it maintains an industry-leading 95% efficiency. The large-scale 220x130x50mm aluminum chassis provides excellent thermal management through natural convection cooling. This flagship model is fully sealed and waterproof, ensuring reliable power delivery even in the most demanding marine and industrial environments. Protection is comprehensive, featuring over-current protection that activates at 120% load and short-circuit protection limited to an 83A maximum current path. With its non-isolated architecture and standard precision, it is the top-tier solution for your high-power 12V needs in high-voltage infrastructures.
이메일: [email protected]
우리 전문가들이 가능한 한 빨리 답변해 드리겠습니다.
- 설명
요약
Rated output: power 960W
Input voltage: 60VDC
Wire Length: 160mm±10mm
General specification
| 모델 | WH-C60721280 |
| 정격 출력 전력(W) | 960W |
| Rated input voltage (V) | 60VDC |
| Rated output voltage (V) | 12VDC |
| Input voltage range (V) | 30V-90VDC |
| Starting voltage (V) | 30VDC 100%Load |
| No-load power consumption (W) | < 4W |
| 능률 | 96% |
| Output voltage (V) | 12VDC |
| Output current | 80A |
| Voltage tolerance | 1% |
| Load regulation | 3% |
| 웨이브(MVP-p) | 200mv External 22UF capacitor ESR < 0. 1 Ω 100KHZ |
| Over current protection | In the case of rated output, if the current exceeds 120% of the rated current, the overcurrent protection will act, and it will automatically recover after the overcurrent disappears. |
| 단락 보호 | Equivalent to a maximum current of 83A and an output voltage of 0V |
| Input-output | 비격리 |
| 방수복 | 완전 밀봉 및 방수 |
| 차원 | 220×130×50mm |
| NW. | 2200g |
| Cooling method | 자연적인 방법 |
| Rated temperature rise (℃) | 45℃ |
| 신뢰할 수 있음 | >100000h |
| Wire indicator | +Input positive, – Input negative – Output negative,+Output |
PIC and installation dimensions
