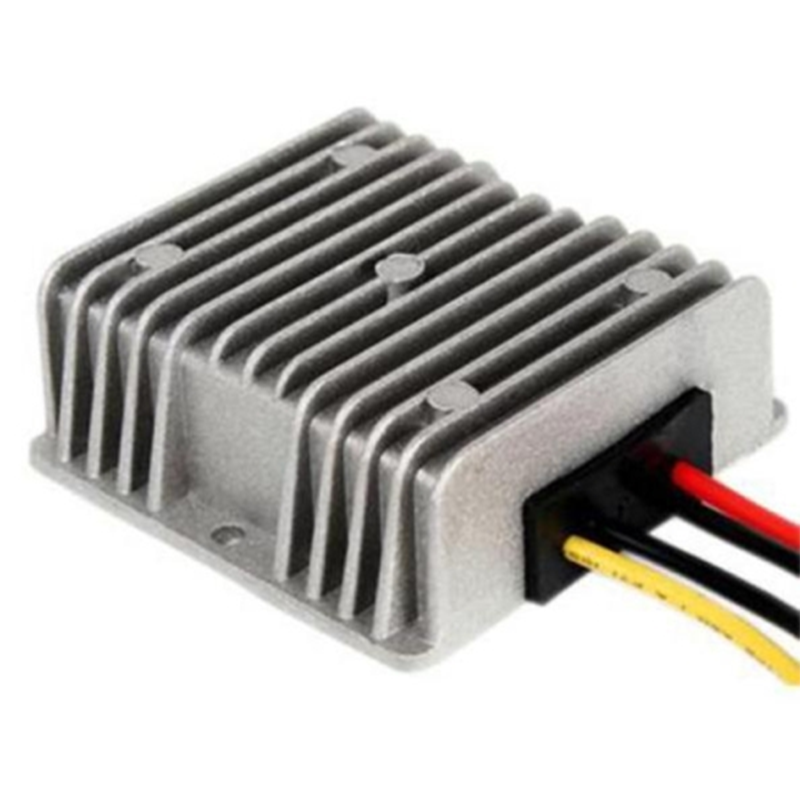

Wide Input 12V/24V to 6V 20A 120W DC to DC Converter
The WEHO WH-C12240620 is a high-performance buck converter designed for high-current 6V applications across a wide 9V-32VDC input range. Providing 120W of power at 20A, it operates at a superior 95% efficiency, ensuring clean and stable power delivery with minimal heat waste. This 74x74x32mm unit is fully sealed and waterproof, making it suitable for automotive and industrial installations. It includes advanced protection features, such as over-current protection triggering at 120% load and short-circuit protection limited to 18A. Boasting a reliability rating of over 100,000 hours and a precision 1% voltage tolerance, it is the top-tier solution for demanding 6V power needs in mixed-voltage systems.
بريد إلكتروني: [email protected]
سوف يقوم المتخصصون لدينا بالرد عليك في أقرب وقت ممكن.
- وصف
ملخص
Rated output: power 120W
Input voltage: 12/24VDC
Wire Length: 160mm±10mm
General specification
| نموذج | WH-C12240620 |
| طاقة الخرج المقدرة (وات) | 120 واط |
| Rated input voltage(V) | 12/24VDC |
| Rated output voltage(V) | 6VDC |
| Input voltage range(V) | 9V-32VDC |
| Starting voltage(V) | 9VDC 100%Load |
| No-load power consumption (W) | < 0.3W |
| كفاءة | 95% |
| Output voltage (V) | 6VDC |
| Output current (A) | 20 أ |
| تحمل الجهد | 1% |
| تنظيم الحمل | 3% |
| موجة (MVP-p) | 100mv External 22UF capacitor ESR < 0. 1 Ω 100KHZ |
| Over current protection | In the case of rated output, if the current exceeds 120% of the rated current, the overcurrent protection will act, and it will automatically recover after the overcurrent disappears. |
| حماية ماس كهربائى | Equivalent to a maximum current of 18A and an output voltage of 0V |
| Input-output | غير معزولة |
| ضد للماء | مختومة بالكامل ومقاومة للماء |
| البعد | 74×74×32mm |
| شمال غرب. | 300 جرام |
| Cooling method | الطريقة الطبيعية |
| Rated temperature rise (℃) | 45 درجة مئوية |
| مصداقية | >100000h |
| Wire indicator | Input positive (red), input output negative (black), output positive (yellow), lead length=160mm±10mm |
PIC and installation dimensions
